CZ_09
WANGLI
This 8-seat folding dining table set is designed for versatile, space-saving dining solutions in commercial and institutional settings. The table features a large 2000×1000mm desktop made from E1-grade density board with solid wood full edge banding, providing a premium, durable surface that resists scratches and moisture. The desktop includes 16 pre-drilled Φ6mm screw holes for secure frame attachment, and can be customized with printed logos. The table folds in half to a compact 120mm thickness for easy storage when not in use. A 900×320×10mm side extension panel is hinged with Φ5mm rivets and can be stowed underneath the desktop when not needed, while a 1850×330×10mm front modesty panel features printed signage and is fixed with Φ5mm rivets. The folding steel frame is constructed from welded 50×50×1.0mm (main), 25×50×1.0mm (secondary), 30×30×1.0mm (folding bracket), and 25×25×1.0mm (horizontal reinforcement) square tubes, with spring-loaded self-locking folding hardware for safe, secure operation. The matching dining chairs feature 400×400×18mm seat boards and 400×240×18mm backrests — both with solid wood edge banding, rounded corners for safety, and logo printing on the backrest. The chair frames are one-piece welded from 30×30×1.0mm square tubes with anti-slip rubber floor glides. All steel components are finished with electrostatic powder coating for superior rust resistance, and all rivets, hinges, and screws are galvanized for long-term durability. The set deploys to 2000(L)×1000(W)×750(H)mm, seating 8 adults comfortably, and folds to a storage-friendly 120mm thickness.
Component | Specification | Material/Note |
|---|---|---|
Desktop (deployed) | 2000×1000×18mm | E1 grade density board, solid wood full edge banding, logo printable |
Desktop (folded) | 1000×1000×18mm | Fold in half, folded thickness 120mm |
Screw holes | 16 holes, Φ6mm | Pre-drilled mounting holes |
Side extension panel | 900×320×10mm | Solid wood edge banding, Φ5mm rivet hinge, stowable under desktop |
Front modesty panel | 1850×330×10mm | Solid wood edge banding, fixed with Φ5mm rivets, printed signage on front |
Component | Specification | Material/Note |
|---|---|---|
Seat board | 400×400×18mm | Solid wood edge banding, 4×Φ6mm screw holes on bottom |
Backrest | 400×240×18mm | Solid wood edge banding, logo printed on front, rounded corners |
Component | Specification | Note |
|---|---|---|
Main folding frame | 50×50×1.0mm | Square tube, welded construction |
Secondary folding frame | 25×50×1.0mm | Square tube, welded construction |
Folding bracket | 30×30×1.0mm | Square tube, welded construction |
Horizontal reinforcement | 25×25×1.0mm | Square tube, welded construction |
Dining chair frame | 30×30×1.0mm | Square tube, one-piece welded |
Item | Specification/Process | Note |
|---|---|---|
Folding hardware | Spring-loaded self-locking folding hardware | Galvanized, rust-proof |
Steel frame finish | Cold-rolled steel tube, electrostatic powder coating | Rust protection |
Connectors | Rivets, hinges, screws | Galvanized, rust-proof hardware |
Chair floor glides: Anti-slip rubber pads

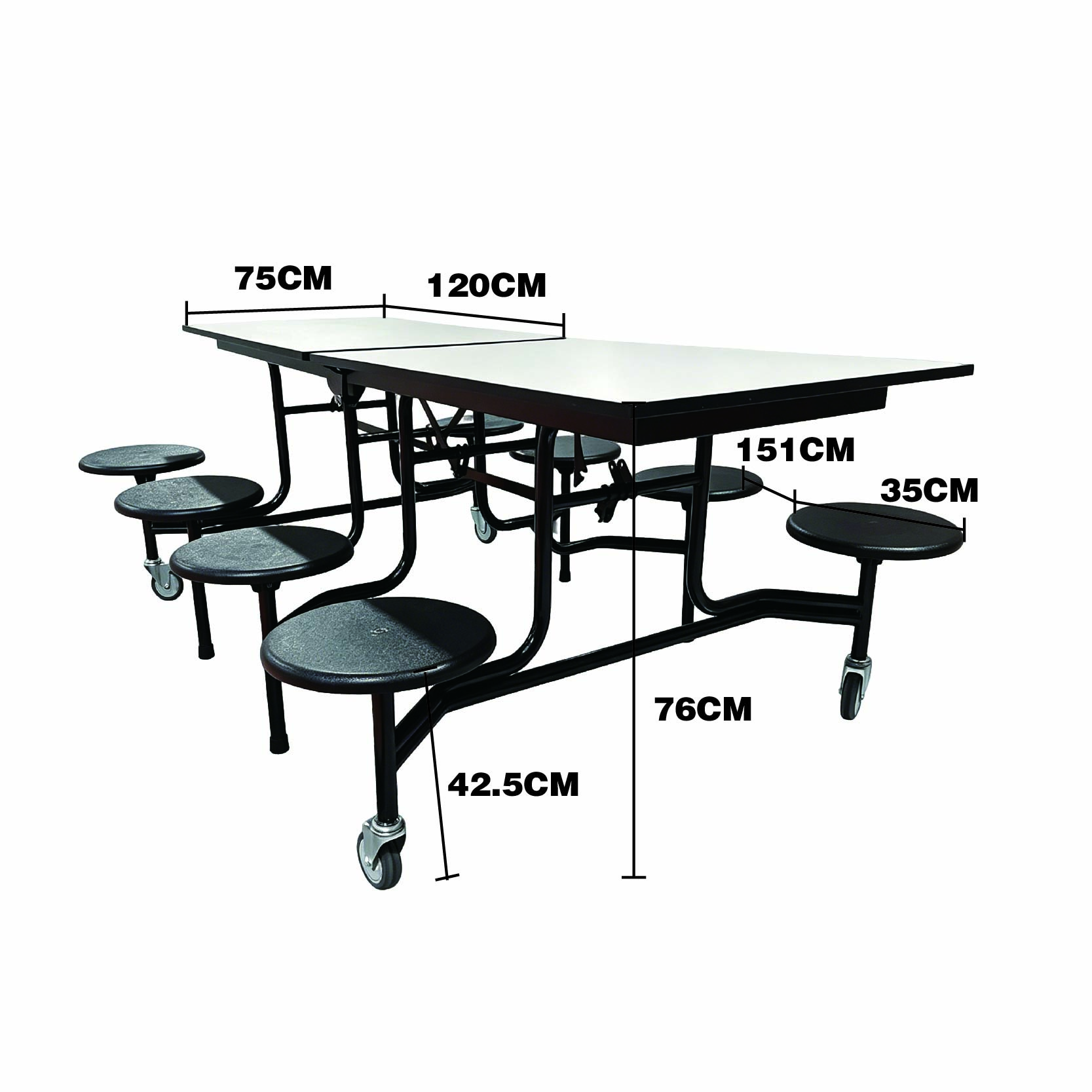

State | Dimensions | Note |
|---|---|---|
Deployed | 2000(L)×1000(W)×750(H)mm | Seats 8 people |
Folded/stored | 2000(L)×1000(W)×120(H)mm | Folded thickness after half-folding |
School & University Cafeterias
The 8-seat capacity maximizes dining space efficiency. The foldable design allows tables to be stored during non-meal times, freeing up floor space for other activities. The durable E1 density board and solid wood edges withstand daily use and cleaning. The printed logo option allows school branding.
Corporate & Staff Canteens
The spacious 2000×1000mm desktop accommodates 8 employees comfortably. The side extension panels provide additional serving or workspace when needed. The foldable design allows for flexible room configurations for meetings or events after meal hours.
Event Venues & Banquet Halls
The quick-folding design enables fast setup and takedown for events, banquets, and functions. The compact 120mm folded thickness allows efficient storage in limited back-of-house spaces. The premium solid wood edge banding and E1 board construction provide an upscale appearance suitable for formal dining.
Multi-Purpose Halls & Community Centers
The versatile folding table adapts to various activities — dining, meetings, workshops, or exhibitions. The durable steel frame and electrostatic powder coating withstand frequent folding, unfolding, and moving. The anti-slip chair glides protect flooring during rearrangement.
Outdoor & Temporary Dining Venues
The rust-resistant galvanized hardware and powder-coated steel frame provide corrosion resistance for covered outdoor use. The foldable design allows for easy transport and storage after events. The 8-seat capacity makes it ideal for outdoor catering and temporary dining setups.
The table features a half-folding design — the 2000mm long desktop folds in the middle to create two 1000×1000mm sections. The spring-loaded self-locking folding hardware ensures secure locking in both the deployed and folded positions. To fold, simply release the safety locks and lift the center; to deploy, unfold the table until the self-locking mechanism engages automatically. The side extension panels stow underneath the desktop via rivet hinges.
All panel components are made from E1-grade density board with solid wood full edge banding. The E1 grade ensures low formaldehyde emissions, making it safe for indoor dining environments. The solid wood edge banding provides excellent impact resistance, scratch resistance, and a premium appearance. The surface is also stain-resistant and easy to clean with standard food-safe disinfectants.

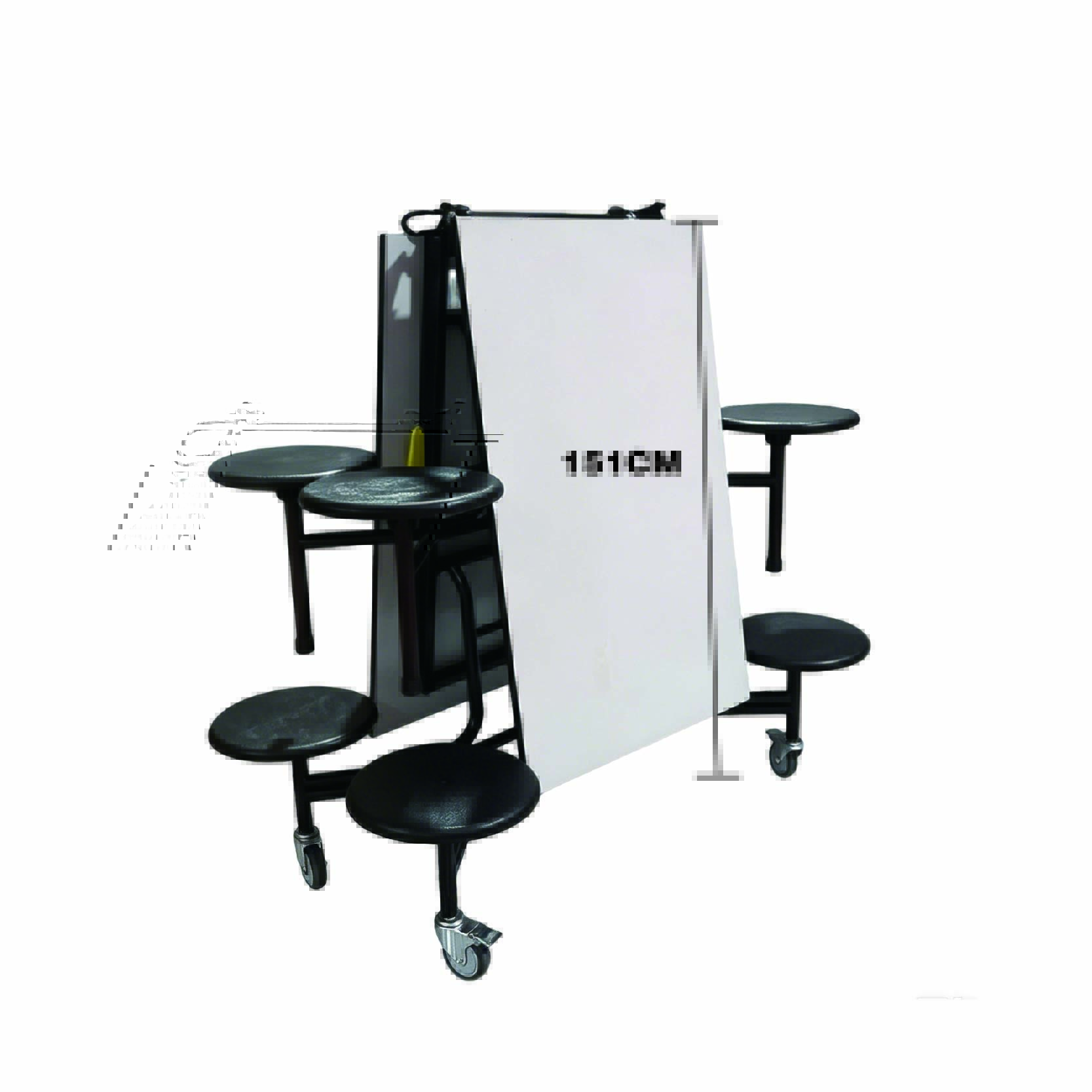

When folded, the table measures 2000mm (L) × 1000mm (W) × 120mm (H) — the same length and width as the deployed table, but with a thickness of only 120mm. Compared to the 750mm deployed height, this saves approximately 630mm of vertical space. Multiple folded tables can be stacked or stored upright against a wall, significantly reducing storage footprint in cafeterias and event venues.
